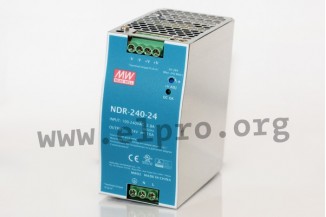

Mean Well DIN rail power supply series NDR-240

Switching power supplies in an enclosed housing with 240W, screw terminals (touch guard), an LED indicator and a universal input. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NDR-240-24 and NDR-240-48.

single output
output: 240W
input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
maximal input inrush current: 35A
leakage current: <1mA
output voltage adjustment: +15%
overload protection: 105 to 130%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -20 to +70°C
weight: 1000g
