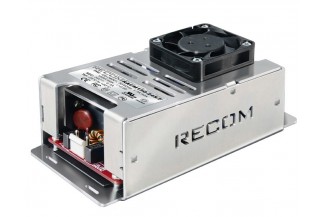

Recom power supply series RACM150

Switching power supplies in an enclosed metal housing with 150W, a low no-load power, a universal input and crimp connections. These devices have a built-in active PFC function and are protected against overload (...

Recom power supply series RACM150

Switching power supplies in an enclosed metal housing with 150W, a low no-load power, a universal input and crimp connections. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for medical applications (2xMOPP) as well as for an operating altitude of up to 5000m and comply with EN60601-1 as well as EN55011. We offer the type RACM150-12S/F of this Recom series.

  • single output
  • output: 150W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <100µA
  • output voltage adjustment: ±10%
  • overload protection: 115 to 150%
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -25 to +85°C
  • weight: 270g
