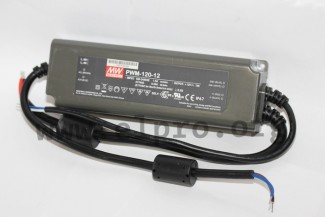

Mean Well LED driver series PWM-120

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (constant current adjustable 0 to 10V, 10V PWM, potentiometer), 120W, protection class II and a PWM output voltage. These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-120-12, PWM-120-24, PWM-120-36 and PWM-120-48.

single output
output: 120 to 122,4W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
no-load power: <0,5W
maximal input inrush current: 60A
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +90°C
dimensions: 191x63x37,5mm
weight: 970g
