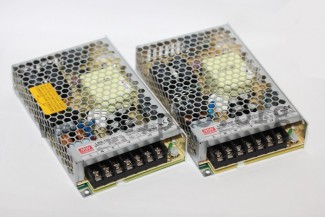

Mean Well power supply series LRS-150 and LRS-150F

Switching power supplies in an enclosed housing with 150W, screw terminals, a universal input (LRS-150F-_), a switch for selecting the AC input voltage range (LRS-150-_) and a low profile. These devices are suitable for an operating altitude of up to 5000m and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a low no-load power and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Mean Well series: LRS-150-12, LRS-150-15, LRS-150-24, LRS-150-36, LRS-150-48, LRS-150F-5, LRS-150F-12, LRS-150F-15, LRS-150F-24, LRS-150F-36 and LRS-150F-48.

single output
output: 110 to 158,4W
input voltage LRS-150-_: 85 to 132V AC / 170 to 264V AC (47 to 63Hz), 120 to 370V DC
input voltage LRS-150F-_: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 60A
leakage current: <0,75mA
output voltage adjustment: ±10%
overload protection: 110 to 140%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1250V AC
operating temperature: -30 to +70°C
weight: 480g
