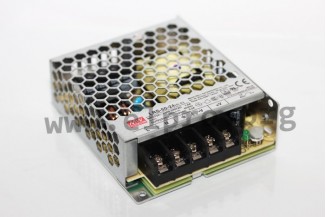

Mean Well power supply series LRS-50

Switching power supplies in an enclosed housing with 50W, a low profile, a universal input and screw terminals. These devices have a high efficiency and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN55032 class B as well as EN62368-1. We offer the following types of this Mean Well series: LRS-50-5, LRS-50-12, LRS-50-15, LRS-50-24, LRS-50-36 and LRS-50-48.

single output
output: 33 to 52,8W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 373V DC
maximal input inrush current: 45A
leakage current: <0,75mA
output voltage adjustment: ±10%
overload protection: 110 to 150%
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1250V AC
operating temperature: -30 to +70°C
weight: 230g
