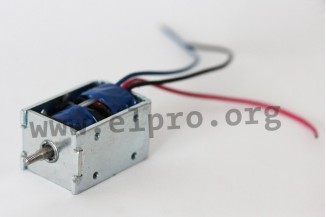

Red Magnetics electromagnet series ITS-LX

Bistable solenoids in an open-frame housing with a positively driven plunger. These framed magnets are lightweight and stable in the end positions. They have a stranded wire conection (100mm) and a stroke ...

Red Magnetics electromagnet series ITS-LX

Bistable solenoids in an open-frame housing with a positively driven plunger. These framed magnets are lightweight and stable in the end positions. They have a stranded wire conection (100mm) and a stroke length of 6mm (ITS-LX-15_/ITS-LX-22_) resp. 8mm (ITS-LX-27_). We offer the following types of this Red Magnetics series: ITS-LX-1513-12VDC, ITS-LX-1513-24VDC, ITS-LX-2218-24VDC, ITS-LX-2723-12VDC and ITS-LX-2723-24VDC.

  • rated voltage: 12 to 24V DC
  • rated current: 1 to 2,5A
  • rated power: 24 to 36W
  • holding force: 4 to 6N
> More
Data Sheet
Showing 1 - 5 of 5 products
