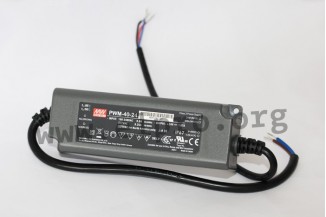

Mean Well LED driver series PWM-40

LED drivers in a plastic housing (IP67) with a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, resistive), a PWM output voltage and 40W. These devices are suitable for LED lighting applications and comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13. They are protected against overload (auto recovery), short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-40-12, PWM-40-24, PWM-40-36 and PWM-40-48.

single output
output: 40,08 to 40,32W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 50A
no-load power: <0,5W
withstand voltage I/P-O/P: 3750V AC
operating temperature: -40 to +85°C
dimensions: 150x53x35mm
weight: 490g
