Mean Well power supply series RST-10000

Switching power supplies in an enclosed housing with 10.000W, a built-in auxiliary power (12V/0,1A), alarm signals, a parallel function, a built-in remote sense function, a 3 phase AC input, a built-in remot...

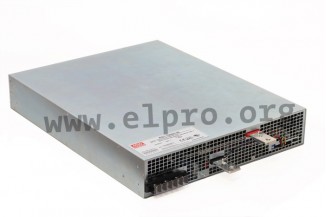

Mean Well power supply series RST-10000

Switching power supplies in an enclosed housing with 10.000W, a built-in auxiliary power (12V/0,1A), alarm signals, a parallel function, a built-in remote sense function, a 3 phase AC input, a built-in remote ON/OFF control, screw terminals and a fan. These devices have a built-in active PFC function and are protected against overload, fan fail, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 20kW and comply with EN55032/EN55011 class A as well as EN55032/EN55011 class A. The output voltage and constant current level are programmable. We offer the following types of this Mean Well series: RST-10000-24, RST-10000-36 and RST-10000-48.

  • single output
  • output: 9600 to 10.080W
  • input voltage: 3x 3-wire 196 to 305V AC (47 to 63Hz) / 3x 4-wire 340 to 530V AC (47 to 63Hz)
  • maximal input inrush current: 100A
  • leakage current: <7mA
  • output voltage adjustment: -2/+20%
  • overload protection: 100 to 112%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 23,5kg
