Mean Well power supply series HSP-200

Switching power supplies in an enclosed housing with 200W, a universal input, a low profile (31mm) and screw terminals. These devices have a built-in active PFC function and are protected against overload (aut...

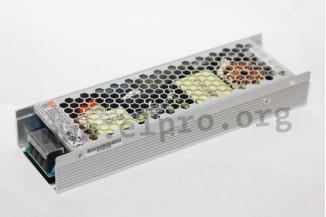

Mean Well power supply series HSP-200

Switching power supplies in an enclosed housing with 200W, a universal input, a low profile (31mm) and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a conformal coating and comply with UL60950-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: HSP-200-4.2 and HSP-200-5.

  • single output
  • output: 168 to 200W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 520g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    Mean Well HSP-200 series
    48,59 €
    45613 HSP-200-4.2 HSP-200-4.2
    48,59 €
    Quantity Unit price
    50 + 47,59 €

    More
    Stock: 13
  • Mean Well
    HSP-200-5
    48,59 €
    45614 HSP-200-5 HSP-200-5
    48,59 €
    Quantity Unit price
    50 + 47,59 €

    More
    Stock: 44
Showing 1 - 2 of 2 products
