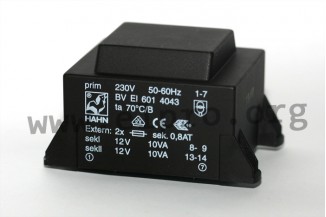

print transformers 20VA by Hahn

• output, max. (Ta 70/B): 20VA
• core: EI60
• non short-circuit proof
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• temperature resistance class: T...

print transformers 20VA by Hahn

• output, max. (Ta 70/B): 20VA
• core: EI60
• non short-circuit proof
• winding of double coated copper wire for better insulation, vacuum casted, two chambers
• connections for PCB use
• temperature resistance class: Ta 70/B
• end temperature in standard use: 120°C
• permissible overtemperature: 50K
• primary voltage (50/60Hz): 230V AC
• test voltage: 4kV/50Hz
• no-load voltage (according to VDE 0570): 1.5 x UN sec.

> More
Data Sheet
--
