> Passive elements>Transformers>PCB transformers>Hahn PCB transformers, 10VA, EI 48

Manufacturers

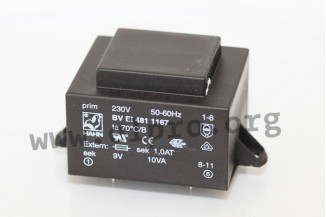

Hahn PCB transformers

Transformers with an EI48 core an 10VA. These components comply with temperature resistance class Ta 70/B and are not short circuit proof. They are suitable for PCB mounting and are vacuum casted. We offer the following types...

Hahn PCB transformers

Transformers with an EI48 core an 10VA. These components comply with temperature resistance class Ta 70/B and are not short circuit proof. They are suitable for PCB mounting and are vacuum casted. We offer the following types of this Hahn series: BV EI 481 1167, BV EI 481 1172, BV EI 481 1184, BV EI 481 1185, BV EI 481 1118, BV EI 481 1119, BV EI 481 1120 and BV EI 481 1307.

  • core: EI48
  • output: 10VA
  • input voltage: 230V AC
  • temperature class: Ta 70/B
  • maximal end temperature: 120°C
  • permissible overtemperature: 50K
  • test voltage: 4kV
> More
Showing 1 - 8 of 8 products
