Hahn PCB transformers

Transformers with 2,1VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F as well as EN61558. They have a low no-load power (<0,4W) and are suitable for PCB mount...

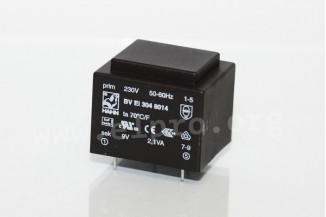

Hahn PCB transformers

Transformers with 2,1VA and an EI 30 core. These devices are short circuit proof and comply with temperature resistance class Ta 70/F as well as EN61558. They have a low no-load power (<0,4W) and are suitable for PCB mounting. We offer the following types of this Hahn series: BV EI 304 8013 and BV EI 304 8014.

  • core: EI 30
  • output: 2,1VA
  • input voltage: 230V AC (50/60Hz)
  • temperature class: Ta 70/F
  • maximal end temperature (short circuit): 210°C
  • maximal end temperature: 140°C
  • no-load power: <0,4W
