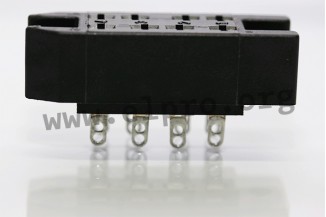

female connectors, straight, 384 by Garry

• according to DIN 41622 with solder contacts for wire-or PCB-mounting
• series: 384
• by Garry
• straight
• with solder pins or solder lugs
• 383_HBN_: contact type female
• 383_GBN_: contact type 10mm
• insulat...

female connectors, straight, 384 by Garry

• according to DIN 41622 with solder contacts for wire-or PCB-mounting
• series: 384
• by Garry
• straight
• with solder pins or solder lugs
• 383_HBN_: contact type female
• 383_GBN_: contact type 10mm
• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)
