> Passive elements>Connectors>IDC connectors>MPE Garry VG male headers, DIN 41622, 383 series

Manufacturers

male connectors, straight or angled, 383 by Garry

• according to DIN 41622 with solder contacts for wire-or PCB-mounting
• series: 383
• by Garry
• straight or angled
• with solder pins or solder lugs
• 383-_-SBN_: contact type male
• 383-_-ABN_: contac...

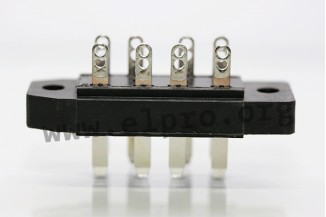

male connectors, straight or angled, 383 by Garry

• according to DIN 41622 with solder contacts for wire-or PCB-mounting
• series: 383
• by Garry
• straight or angled
• with solder pins or solder lugs
• 383-_-SBN_: contact type male
• 383-_-ABN_: contact type 15.5mm
• 383-_-EBN_: 90° angeld type
• insulation shell: thermoplastic (UL94V-0)
• contact material: copper alloy, Ag 4µ
• rated current: 10A
• dielectric strength (for 1min.): 875VRMS
• temperature range: -20 ...+85°C
• max. process temperature: 230°C (5s)
