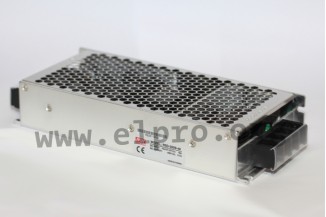

Mean Well DC/DC converter series RSD-300

DC/DC converter modules in an enclosed housing (1U/40mm) with 300W, an input voltage ratio of 2:1, a galvanic isolation of input/output, an LED indicator for power on, a regulated output voltage and screw t...

Mean Well DC/DC converter series RSD-300

DC/DC converter modules in an enclosed housing (1U/40mm) with 300W, an input voltage ratio of 2:1, a galvanic isolation of input/output, an LED indicator for power on, a regulated output voltage and screw terminals. These devices are suitable for rail industry applications and are protected against overload, input voltage reversal, short circuit, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN45545-2, EN50155, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-300B-5, RSD-300B-12, RSD-300B-24, RSD-300B-48, RSD-300C-5, RSD-300C-12, RSD-300C-24, RSD-300C-48, RSD-300D-5, RSD-300D-12, RSD-300D-24, RSD-300E-5, RSD-300E-12, RSD-300E-48, RSD-300F-5, RSD-300F-12, RSD-300F-24 and RSD-300F-48.

  • single output
  • output: 210 to 302,4W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 1190g
> More
Data Sheet
--
