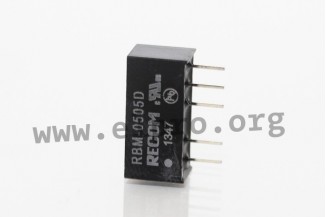

Recom DC/DC converter series RBM

DC/DC converters in a SIP/SIL6-micro housing with 1W output are available for direct PCB mounting. These devices come in two versions: RBM-_S, which has a single output, and RBM-_D, which provides dual outputs. The...

Recom DC/DC converter series RBM

DC/DC converters in a SIP/SIL6-micro housing with 1W output are available for direct PCB mounting. These devices come in two versions: RBM-_S, which has a single output, and RBM-_D, which provides dual outputs. They have been approved for medical applications and feature an industry standard pinout. With efficiency up to 85%, these converters offer unregulated voltage with ±5% accuracy and ripple & noise of maximum 100mVpp. The isolation is rated at 3kV DC while the operating temperature range is -40 to +85°C. We offer the following types of this Recom series: RBM-0505S, RBM-1205S, RBM-0505D, RBM-0512D, RBM-1205D and RBM-1212D.

  • single (RBM-_S) resp. dual output (RBM-_D)
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 3000V DC (1s)
  • operating temperature: -40 to +85°C
  • weight: 1,3g
> More
Data Sheet
