DIN rail sockets and accessories

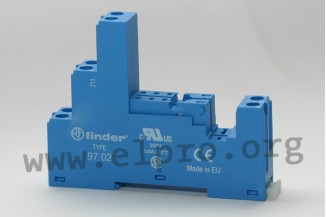

97.02, 97.01 screw terminals snap-on mounting
* screw sockets with integrated terminal for indicator and suppression moduls series 99.02_
* according to VDE0106, EN50178, EN60204
* contact rating: 8A/250V aor 16A/250V...

DIN rail sockets and accessories

97.02, 97.01 screw terminals snap-on mounting
* screw sockets with integrated terminal for indicator and suppression moduls series 99.02_
* according to VDE0106, EN50178, EN60204
* contact rating: 8A/250V aor 16A/250V
* dielectric strenght: 6kV
* ambient temperature: -40...+70°C
* colour: blue
* for relays series 46
* suitable retain and release clip 09701 (optional)

97.52, 97.51
* screw terminal with spring terminals and with integrated snap-on mounting
* for time-saving wiring
* screw terminal for 35mm snap-on mounting rail for display and suppression 99.02_
* "safe separation" according to VDE0106, EN50178, EN60204 between coil and contacts
* contact rating: 8A/250V or 16A/250V
* dielectric strength: 6kV
* temperature range: -25...+70°C
* colour: blue
* suitable for relays series 46
* suitable retaining clip supplied 097.01

097.01
* plastic retain and release clip
* for 97._ sockets supplied with relays from the 46. series

99.02_
* coil indication and EMC suppression modules
* for 97.51 and 97.52 sockets
* 99.02.3.000.00: diode, 6...220V DC
* 99.02.9.024.99: diode and LED,, 6...24V DC
* 99.02.0.230.98: LED and varistor, 110...240V DC/AC
