DIN rail sockets and accessories

* no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips
* relays are easily replaced
* modules are placed easily and safely (proper polarity alignment) into the socket

* rate...

DIN rail sockets and accessories

* no reduction in the insulation class resp. the creepage and clearance by plastic retaining clips
* relays are easily replaced
* modules are placed easily and safely (proper polarity alignment) into the socket

* rated voltage: 250V AC
* rated current: 10A
* insulation resistance: 103MΩ
* insulation voltage: 2kV
* type of protection: IP20
* housing material: PA66
* contacts: CuZn33, nickel-plated


93.01_, 93.51_ DIN rail sockets for 34.51 relays
* snap-on mounting for DIN-rail (EN 50022)
* 93.01_: with screw terminal
* 93.51_: with screwless terminal
* retaining and release clip
* coil indication and EMC suppression modules
* securely disconnection according to the VDE 0106, EN 50178, EN 60204
* 93._.07-24: for relays with 6...24V DC supply voltage
* 93._.03-240AC: for relays with 200...240A AC/DC supply voltage


screwed sockets for DIN rails
95.83.3
* suitable for 40.31
* pitch: 2.5mm
* colour: blue

95.85.3
* suitable for 40.52, 40.61, 41.52, 41.61
* pitch: 5.08mm
* colour: blue

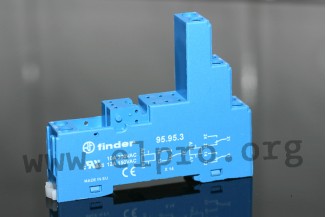

95.95.3
* suitable for 0.52, 40.61, 41.52, 41.61
* pitch: 5.08mm
* colour: blue

95.91.3 retaining clips
* blue varioclip for:
95.83.3 + 40.31
95.85.3 + 40.52 resp. 95.95.3 + 40.52 + 44.62
95.85.3 + 40.61 resp. 95.95.3 + 40.61 + 44.62

99.80 display modules for sockets 95.83.3, 95.85.3, 95.95.3
* LED colour:: green
* module colour: blue

99.80.36-220V
* diode module (6...220V DC)

99.80.9 6-24V
* LED module with diode (6...24V DC)

99.80.0 6-24V
* LED display with varistor (6...24V AC/DC)

99.80.0 110-230V
* LED display with varistor (110...230V AC/DC) + positive pole A1

> More
