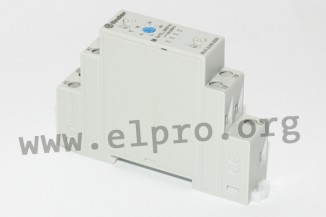

universal industrial timer 80_ by Finder

* rated current: 16A
* contact: SPDT
* series: 80_
* multifunction with 6 settings
* multivoltage of 12...240V AC/DC or 24...240V AC/DC
* voltage adjustment by pulse width modulation (PWM)
* six over-lapping adju...

universal industrial timer 80_ by Finder

* rated current: 16A
* contact: SPDT
* series: 80_
* multifunction with 6 settings
* multivoltage of 12...240V AC/DC or 24...240V AC/DC
* voltage adjustment by pulse width modulation (PWM)
* six over-lapping adjustable time scales from 0,1s to 20h
* setting/operating element screwdriver adjustable
* 35 mm rail (EN 60715) mount
* category of protection IP20
* contact material: AgCdO
* max. wwitching current: 30A
* max. switching voltage: 400V AC
* max. switching power: 4000VA
* recovery time: 100ms
* lifetime electrical: 100x103 cycles
* operating temperature: -10...+50°C
* by Finder

* timer functions FZR8001-230:
ON delay
ON pulse
symmetrical recycler: ON start
signal OFF delay over start contact
signal ON and OFF delay over start contact
signal ON pulse over start contact

* timer functions FZR8011-240:
ON delay

* timer functions FZR8041-240:
signal OFF delay over start contact

> More
Data Sheet
