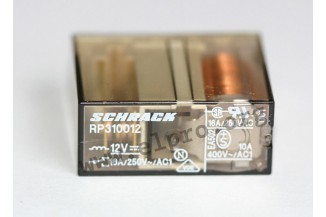

> Passive elements>Relays>Electromechanical relays>TE Connectivity PCB relays, 16A, 1 changeover contact, Schrack, RP series

Manufacturers

rated current: 16A

* flux proof
* sensitive coil: 500mW
* insulation to VDE0110b: C/250
* relay protection class RTII
* contact: SPDT (single contact)
* contact material: AgCdO
* rated current: 16A
* max. switching current: 25A
* max. switching voltage: 4...

rated current: 16A

* flux proof
* sensitive coil: 500mW
* insulation to VDE0110b: C/250
* relay protection class RTII
* contact: SPDT (single contact)
* contact material: AgCdO
* rated current: 16A
* max. switching current: 25A
* max. switching voltage: 440V AC
* max. switching power: 4000VA
* creepage/clearance: 8/8mm
* operate/release time: 8/2ms
* testing voltage
coil/contact: 4000Vrms
opening contact: 1000Vrms
* lifetime
mechanical: 30x106 operations
operating temperature: -40...+70°C
* weight approx.: 18g

> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • TE Connectivity
    RP 310 12V
    3,49 €
    12008 RP 310 12V 2-1393230-9 2-1393230-9
    3,49 €

    More
    Stock: 1
Showing 1 - 1 of 1 product
