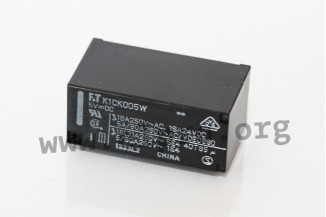

PCB relays 16A, FTR-K1 by Fujitsu/Takamisawa

* series: FTR-K1
* contact: SPST-NO or SPDT
* housing: 29x12.7x15.7mm
* low profile (height 15,7mm)
* high sensitive coil: 400mW
* dielectric strength between coil and contacts: 5kV
* insulation: 10mm between...

PCB relays 16A, FTR-K1 by Fujitsu/Takamisawa

* series: FTR-K1
* contact: SPST-NO or SPDT
* housing: 29x12.7x15.7mm
* low profile (height 15,7mm)
* high sensitive coil: 400mW
* dielectric strength between coil and contacts: 5kV
* insulation: 10mm between coil and contacts
* cadmium free contacts
* protection class RTII
* contact material: AgSnO2
* rated current: 16A
* max. switching current: 20A
* max. switching voltage: 440V AC/300V DC
* max. switching power: 4000VA/384W
* max. operate/release time: 15/5ms
* testing voltage coil/contact (1min.): 5000V AC
* testing voltage opening contact (1min.): 1000V AC
* min. lifetime mechanical: 20x106 operations
* min. lifetime electrical (AC/DC): 100x103/100x103 operations
* operating temperature: -40 to +85°C
* by Fujitsu/Takamisawa
* weight approx.: 13g

> More
Data Sheet
