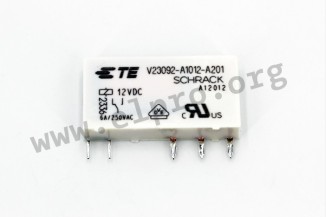

> Passive elements>Relays>Electromechanical relays>TE Connectivity PCB relays, 6A, 1 changeover contact, Schrack, SNR series

Manufacturers

rated current: 6A

• ultra-slim: 5mm
• cadmium-free contacts
• sensitive coil 170mW
• 4kV coil contact, 6/8mm clearance/creepage
• protection class II (VDE0631)
• contact: SPDT
• contact material: AgSnO2
• rated current: 6A
• max. switching current: 10A
• r...

rated current: 6A

• ultra-slim: 5mm
• cadmium-free contacts
• sensitive coil 170mW
• 4kV coil contact, 6/8mm clearance/creepage
• protection class II (VDE0631)
• contact: SPDT
• contact material: AgSnO2
• rated current: 6A
• max. switching current: 10A
• rated voltage: 250V AC
• max. switching voltage: 400V AC
• max. switching power: 1500VA
• creepage/clearance: 6/8mm
• operate/release time: 12/5ms
• testing voltage
coil/contact: 4000Vrms
opening contact: 1000Vrms
• lifetime
mechanical: 10x106 operations
electrical (5A/250V AC): 10x103 operations
• operating temperature: -40...+85°C
• solderability: 260°/5s
• weight approx.: 6g
