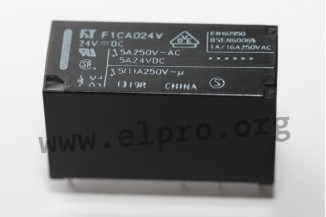

PCB relays 5-8A, FTR-F1 series by Fujitsu/Takamisawa

* series: FTR-F1
* contact: DPDT
* housing: 29x12.8x16.5mm
* low profile (height 16,5mm)
* FTR-F1CA_: standard Type: 530mW
* FTR-F1CL_: high sensivity type: 400mW
* high insulation: 8mm between coil a...

PCB relays 5-8A, FTR-F1 series by Fujitsu/Takamisawa

* series: FTR-F1
* contact: DPDT
* housing: 29x12.8x16.5mm
* low profile (height 16,5mm)
* FTR-F1CA_: standard Type: 530mW
* FTR-F1CL_: high sensivity type: 400mW
* high insulation: 8mm between coil and contacts
* protection class
FTR-F1CA_: RTIII
FTR-F1CL_: RTII
* contact material: AgSnO2 + Au
* max. rated/switching current
FTR-F1CA_: 5/7A
FTR-F1CL_: 8/8A
* max. switching voltage: 400V AC/300V DC
* max. switching power
FTR-F1CA_: 1250VA / 120W
FTR-F1CL_: 2000VA / 192W
* creepage/clearance: 8/8mm
* max. operate/release time: 15/5ms
* testing voltage coil/contact (1min.): 5000V AC
* testing voltage opening contact (1min.): 1000V AC
* min. lifetime mechanical: 20x106 operations
* min. lifetime electrical
FTR-F1CA_: 100x103 operations
FTR-F1CL_: 50x103 operations
* operating temperature: -40...+75°C
* by Fujitsu/Takamisawa
* weight approx.: 13g
