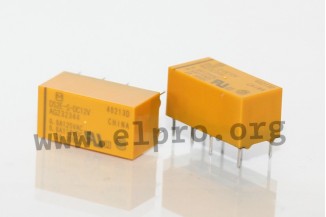

PCB relays 3A, DS2E-S by Panasonic

• series: DS2ES
• contact: DPDT
• housing: 20x9.9x9.3mm
• high switching capacity in a compact housing
• high sensitivity: 200mW
• surge withstand between contact and coil: 1500V
• high insulation resistance: min. 100MΩ
• contact material: Ag + Au clad
• max. switching current: 3A
• max. switching voltage: 220V DC/250V AC
• rated power: 200mW
• max. switching power: 125VA/60W
• min. insulation resistance.: 100 MΩ
• max. operate/release time: 10/5ms
• testing voltage coil/contact (1 min.): 1500V AC
• testing voltage contact/contact (1 min.): 1000V AC
• max. operating speed: 60 operations/min.
• min. lifetime mechanical: 10⁸ operations
• min. lifetime electrical: 5x10⁵ operations
• operating temperature: -40...+70°C
• by Panasonic
• weight approx.: 4g
