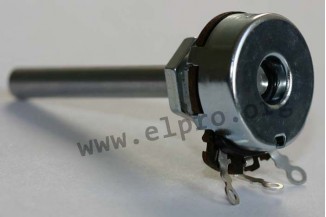

> Passive elements>Potentiometers>Rotary potentiometers>AB-Elektronik wirewound rotary potentiometers, 6mm, 4W, AW series

Manufacturers

6mm, 4 Watt

* linear
* rated dissipation (40°C): 4W
* shaft: metal, Ø6,0mm
* housing: Ø24mm
* hold-off voltage: 500V
* insulation voltage: 1KV~
* independent linearity: ±2%
* mechanical rotation angle300° ±10°
* electrical rotation angle: 280° ±5°
* opera...

6mm, 4 Watt

* linear
* rated dissipation (40°C): 4W
* shaft: metal, Ø6,0mm
* housing: Ø24mm
* hold-off voltage: 500V
* insulation voltage: 1KV~
* independent linearity: ±2%
* mechanical rotation angle300° ±10°
* electrical rotation angle: 280° ±5°
* operating torque: 0.7...3.6Ncm
* end stop torque: 115Ncm
* temperature range: -40...+90°C
* by AB Elektronik


> More
Data Sheet
