> Passive elements>Potentiometers>Rotary potentiometers>Vishay precision potentiometers, 3W, PE30 series

Manufacturers

3W, cermet potentiometer

* linear
* power: 3 watt
* shaft: metal, Ø6mm
* housing: Ø19,7mm
* high performance
* low temperature coefficient
* excellent stability
* completely sealed
* high mechanical strength
* hold-off voltage: 300V
* dielectric strength ...

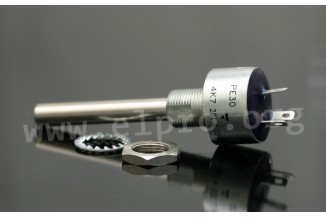

3W, cermet potentiometer

* linear
* power: 3 watt
* shaft: metal, Ø6mm
* housing: Ø19,7mm
* high performance
* low temperature coefficient
* excellent stability
* completely sealed
* high mechanical strength
* hold-off voltage: 300V
* dielectric strength (RMS): 2500V
* standard tolerance: ±20%
* resistive element: cermet
* end resistance (typ.): 1Ω
* mechanical rotation angle: 300° ±5°
* electrical rotation angle: 270° ±10°
* operating torque, max.: 3Ncm
* stop end torque, max.: 120Ncm
* temperature range: -55...+125°C
* temperature coefficient (typ.): ±150ppm/°C
* climatic category: 55/125/56
* sealing: IP67
* by vishay

> More
Data Sheet
