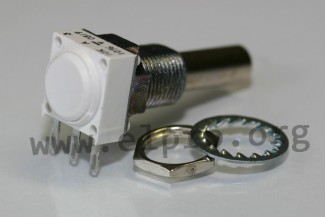

> Passive elements>Potentiometers>Rotary potentiometers>Vishay precision potentiometers, 6mm, P11S series

Manufacturers

cermet precision potetiometer

* linear
* power rating (TU = 70°C): 1W
* shaft: metal Ø6mm
* housing: 12.5x12.5mm
* hold-off voltage: 350V
* dielectric strength (RMS): 1500V
* insulation resistance, min.: 106MΩ
* standard tolerance: ±10%
* resistive elemen...

cermet precision potetiometer

* linear
* power rating (TU = 70°C): 1W
* shaft: metal Ø6mm
* housing: 12.5x12.5mm
* hold-off voltage: 350V
* dielectric strength (RMS): 1500V
* insulation resistance, min.: 106MΩ
* standard tolerance: ±10%
* resistive element: cermet
* end resistance (typ.): 2Ω
* electrical travel: 270° ±10°
* mechanical travel: 300° ±5°
* operating torque, max.: 0.4...1.8Ncm
* stop end torque, max.: 80Ncm
* temperature range: -55...+125°C
* temperature coefficient (typ.): ±150ppm/°C
* climatic category: 55/125/56
* sealing: IP64
* by vishay

> More
Data Sheet
