> Passive elements>Potentiometers>Rotary potentiometers>Vishay potentiometer knobs, 1W, P16N series

Manufacturers

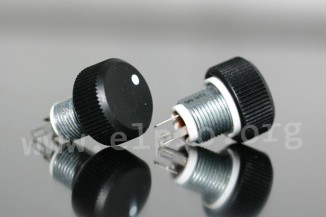

cermet precision potentiometers P16N by Vishay

• series: P16N
• linear, plastic knob
• housing: Ø16mm
• high performance
• compact form
• excellent stability
• completely sealed
• high mechanical strength
• power rating (TU = 40°C): 1W
• hold-off voltage...

cermet precision potentiometers P16N by Vishay

• series: P16N
• linear, plastic knob
• housing: Ø16mm
• high performance
• compact form
• excellent stability
• completely sealed
• high mechanical strength
• power rating (TU = 40°C): 1W
• hold-off voltage: 350V
• dielectric strength (RMS): 2500V
• Insulation: 106MΩ
• standard tolerance: ±20%
• resistive element: cermet
• end resistance (typ.): 1Ω
• rotation angle mechanical: 300° ±5°
• rotation angle electrical: 270° ±10°
• operating torque, typ.: 2Ncm
• end stop torque:, max.: 25Ncm
• temperature range: -40...+125°C
• temperature coefficient (typ.): ±150ppm/°C
• climatic category: 40/100/56
• sealing: IP67
• by Vishay

> More
Data Sheet
--
