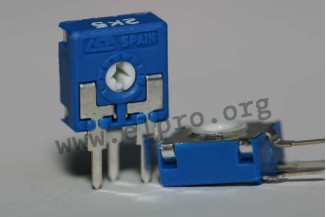

carbon trimmers CA9(M)H by ACP

• output: 0,15 W
• series: CA9(M)H, side adjustment
• shaft TRB S: arrow slot
• shaft TRBA S: hexagon
• by ACP
• pitch: 5x2.5mm
• plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)
*...

carbon trimmers CA9(M)H by ACP

• output: 0,15 W
• series: CA9(M)H, side adjustment
• shaft TRB S: arrow slot
• shaft TRBA S: hexagon
• by ACP
• pitch: 5x2.5mm
• plastic carbon film resistive element on an extra flexible conductive foil (carbon trimmer)
• resistant against humidity and corrosion
• fully sealed housing, dust and colophony proof, protected against harmful influences
• metal parts made from non-ferrous metal which prevents oxidation and increases solderability
• excellent contact between connectors and substrate, reduces contact resistance
• used plastics are resistant against cleaning solutions and self-extinguishable class HB according to UL94
• very soft, smooth movement of the wiper over the track
• rectangular form allows automatic use
• dual mid position contact wiper
• pointer position readable on scalar
• taper: linear according to DIN 41450-1-4-5
• power rating (TU = 40°C): 0.15W
• operating voltage, max.: 200V
• resistance tolerance 100Ω...1MΩ: ±20%
• resistance tolerance >1MΩ...5MΩ: ±30%
• residual resistance (lin): ≤5x10-3Ω or 2Ω
• temperature range: -25°...+70°C
• rotation mechanical: 240 ±5°
• rotation electrical: 220 ±20°
• torque (= operating force): 0.4...2Ncm
• stop torque, max.: 5Ncm
• width x height: 9.8x10mm
• necessary hole (Ø): 1.3mm
• resistance values in clear print

• terminal definition
A - A = start
S - B = wiper
E - C = end
