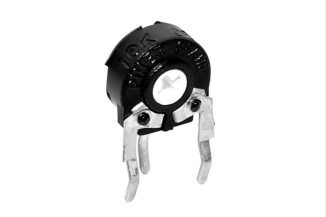

carbon trimmers PT6KH by Piher

* power: 0.1W
* series: PT6, side adjust
* shaft: arrow slot
* by Piher
* pitch: 2.5/5mm
* housing: Ø 6mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wipe...

carbon trimmers PT6KH by Piher

* power: 0.1W
* series: PT6, side adjust
* shaft: arrow slot
* by Piher
* pitch: 2.5/5mm
* housing: Ø 6mm
* polyester substrate
* sealed enclosure, dust and colophony proof, protected against harmful influences
* double wiper, dual support
* excellent stability, multipurpose applications as variable film potentiometer
* wiper positioned at 50% or fully clockwise
* resistant against cleaning agents, ultrasonic cleaning possible
* taper: linear
* power rating (TU = 40°C): 0.1W
* operating voltage, max.: 100V DC
* resistance tolerance ≤1MΩ: ±20%
* resistance tolerance >1MΩ: ±30%
* temperature range: -25...+70°C
* resistance tolerance mechanical: 235 ±5°
* resistance tolerance electrical: 220 ±20°
* torque: 0.2...2Ncm
* stop torque: 4Ncm
* diameter: 6.3mm
* depth: 3.3mm
* resistance and production code
