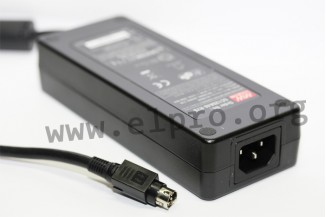

Mean Well battery charger series GC120A

2 stage battery chargers in a plastic housing with 120W, a universal input, a 2 color LED indicator and a low no-load power. These devices are suitable for lead-acid as well as Li-ion batteries and are protected against overload (auto recovery), overtemperature, short circuit, overvoltage as well as reverse current. They have a built-in active PFC function and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GC120A12-R7B, GC120A12-R7B and GC120A48-R7B.

single output
output: 102 to 120,2W
input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
maximal input inrush current: 70A
AC current: 0,7A
overload protection: 90 to 110%
withstand voltage I/P-O/P: 3000V AC
insulation resistance I/P-O/P: 100MΩ
operating temperature: -30 to +70°C
dimensions: 167x67x35mm
weight: 0,62kg
