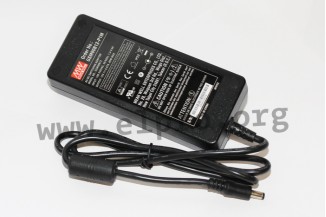

Mean Well desktop power supply series GSM90B

Desktop switching power supplies with 90W, insulation class II, a universal input, energy efficiency Level VI, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, short circuit as well as overvoltage. They have a service life of more than 90.000 hours and comply with EN60601-1, EN60601-1-11, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM90B12-P1M, GSM90B15-P1M, GSM90B19-P1M, GSM90B24-P1M and GSM90B48-P1M.

single output
output: 80 to 90W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 60A
input plug: C8 (IEC320-C8)
output plug: 5,5x2,5mm
operating temperature: -30 to +70°C
weight: 450g

> More

Data Sheet
