Mean Well desktop power supply series GS90A

Desktop switching power supplies in a plastic housing with 90W, a universal input, an LED indicator for power on, energy efficiency Level V, insulation class I and a low no-load power (<0,5W). These d...

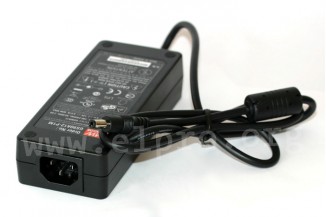

Mean Well desktop power supply series GS90A

Desktop switching power supplies in a plastic housing with 90W, a universal input, an LED indicator for power on, energy efficiency Level V, insulation class I and a low no-load power (<0,5W). These devices have a built-in active PFC function, are protected against overload, overtemperature, overvoltage as well as short circuit and comply with EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GS90A12-P1M and GS90A24-P1M.

  • single output
  • output: 80 to 90W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 110 to 150%
  • operating temperature: -30 to +50°C
  • dimensions: 145x60x32mm
  • weight: 450g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    GS90A12-P1M
    23,90 €
    32401 GS90A12-P1M GS90A12-P1M
    23,90 €

    More
    Stock: 9
  • Mean Well
    GS90A24-P1M
    23,90 €
    32400 GS90A24-P1M GS90A24-P1M
    23,90 €

    More
    Stock: 1
Showing 1 - 2 of 2 products
