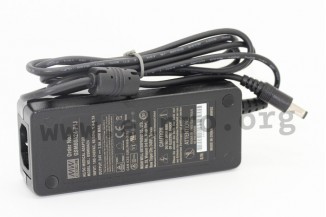

Mean Well desktop power supply series GSM60A

Desktop switching power supplies with 60W, a universal input, insulation class I, a low no-load power and an LED indicator for power on. These devices are suitable for medical technology applications (2xMOPP) and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a service life of more than 105.000h and comply with EN60601-1, EN55011 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: GSM60A05-P1J, GSM60A07-P1J, GSM60A09-P1J, GSM60A12-P1J, GSM60A15-P1J, GSM60A18-P1J, GSM60A24-P1J and GSM60A48-P1J.

single output
output: 30 to 60W
input voltage: 80 to 264V AC (47 to 63Hz), 113 to 370V DC
maximal input inrush current: 60A
input plug: C14 (EN60320-1)
output plug: 2,1x5,5mm
operating temperature: -30 to +70°C
weight: 320g

> More

Data Sheet
