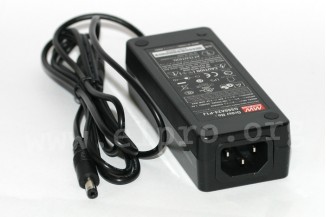

Mean Well desktop power supply series GS60A

Desktop switching power supplies in a plastic housing with 60W, energy efficiency Level V, a universal input, an LED indicator for power on, insulation class I and a low no-load power (<0,3W). These d...

Mean Well desktop power supply series GS60A

Desktop switching power supplies in a plastic housing with 60W, energy efficiency Level V, a universal input, an LED indicator for power on, insulation class I and a low no-load power (<0,3W). These devices are protected against overload, overtemperature, overvoltage as well as short circuit and comply with EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type GS60A48-P1J of this Mean Well series.

  • single output
  • output: 60W
  • input voltage: 90 to 264V AC (47 to 63Hz), 135 to 370V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • input plug: C14 (EN60320-1)
  • output plug: 2,1x5,5mm
  • operating temperature: -30 to +60°C
  • dimensions: 125x50x31,5mm
  • weight: 305g
> More
Data Sheet
