Mean Well DIN rail power supply series WDR-480

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, a universal input, a two phase input and screw terminals (touch guard). These devices have a built-in active ...

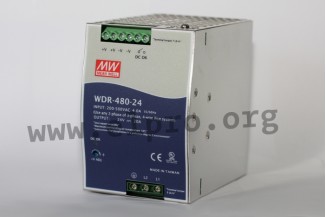

Mean Well DIN rail power supply series WDR-480

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, a universal input, a two phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2, EN61000-3-3 as well as EN55024. We offer the following types of this Mean Well series: WDR-480-24 and WDR-480-48.

  • single output
  • output: 480W
  • input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1700g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    WDR-480-24
    129,19 €
    35597 WDR-480-24 WDR-480-24
    129,19 €
    Quantity Unit price
    50 + 125,89 €

    More
    Stock: 221
  • Mean Well
    WDR-480-48
    143,69 €
    35598 WDR-480-48 WDR-480-48
    143,69 €
    Quantity Unit price
    50 + 140,69 €

    More
    Stock: 47
Showing 1 - 2 of 2 products
