Mean Well DIN rail power supply series SDR-480P

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, an LED indicator for power on, a universal input, a parallel function (7+1 / 3840W) and screw terminals (tou...

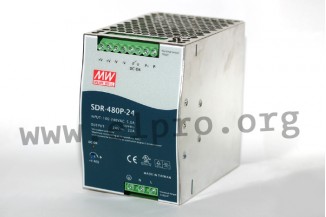

Mean Well DIN rail power supply series SDR-480P

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, an LED indicator for power on, a universal input, a parallel function (7+1 / 3840W) and screw terminals (touch guard). These devices have a built-in active PFC function and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. We offer the following types of this Mean Well series: SDR-480P-24 and SDR-480P-48.

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • peak power: 720W (3s)
  • leakage current: <0,6mA
  • output voltage adjustment: +15%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 1600g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    SDR-480P-24
    115,69 €
    35323 SDR-480P-24 SDR-480P-24
    115,69 €
    Quantity Unit price
    50 + 112,69 €

    More
    Stock: 232
  • Mean Well
    SDR-480P-48
    115,69 €
    35322 SDR-480P-48 SDR-480P-48
    115,69 €
    Quantity Unit price
    50 + 112,69 €

    More
    Stock: 88
