Mean Well DIN rail power supply series SDR-480

Switching power supplies in a DIN rail housing with 480W, an LED indicator for power on, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices have a built...

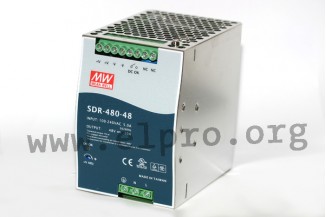

Mean Well DIN rail power supply series SDR-480

Switching power supplies in a DIN rail housing with 480W, an LED indicator for power on, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SDR-480-24 and SDR-480-48.

  • single output
  • output: 480W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • peak power: 720W (3s)
  • leakage current: <0,8mA
  • output voltage adjustment: +15%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 1600g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    SDR-480-24
    110,79 €
    33798 SDR-480-24 SDR-480-24
    110,79 €
    Quantity Unit price
    50 + 107,99 €

    More
    Stock: 1116
  • Mean Well
    SDR-480-48
    115,69 €
    33799 SDR-480-48 SDR-480-48
    115,69 €
    Quantity Unit price
    50 + 112,69 €

    More
    Stock: 209
