Mean Well DIN rail power supply series WDR-240

Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are...

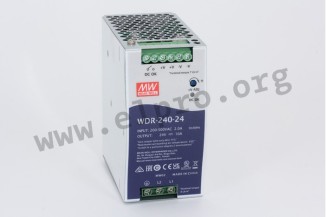

Mean Well DIN rail power supply series WDR-240

Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a single / two phase input and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: WDR-240-24 and WDR-240-48.

  • single output
  • output: 240W
  • input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1060g
> More
Data Sheet
Showing 1 - 2 of 2 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    WDR-240-24, Mean Well DIN rail switching power supplies, 240W, 2-phase input, WDR-240 series
    88,99 €
    36136 WDR-240-24 WDR-240-24
    88,99 €
    Quantity Unit price
    50 + 86,79 €

    More
    Stock: 1170
  • Mean Well
    WDR-240-48, Mean Well DIN rail switching power supplies, 240W, 2-phase input, WDR-240 series
    104,89 €
    36137 WDR-240-48 WDR-240-48
    104,89 €
    Quantity Unit price
    50 + 102,69 €

    More
    Stock: 38
Showing 1 - 2 of 2 products
