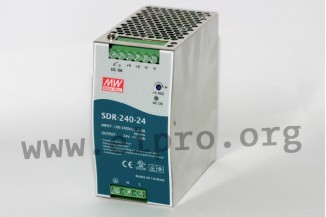

Mean Well DIN rail power supply series SDR-240

Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN60204-1, EN55032, EN61204 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SDR-240-24 and SDR-240-48.

single output
output: 240W
input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
maximal input inrush current: 55A
peak power: 360W (3s)
leakage current: <1mA
output voltage adjustment: +15%
withstand voltage I/P-O/P: 3000V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -25 to +70°C
weight: 1030g
