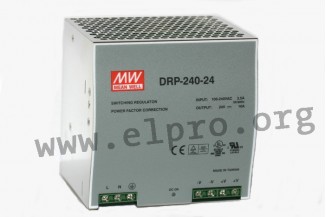

Mean Well DIN rail power supply series DRP-240

Switching power supplies in an enclosed housing with 240W, a universal input, an LED indicator for power on and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a fanless design and comply with EN55032 class B, EN55024, EN61000-3-2 as well as EN61000-3-3. We offer the type DRP-240-48 of this Mean Well series.

• single output
• output: 240W
• input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
• maximal input inrush current: 45A
• leakage current: <3,5mA
• overload protection: 105 to 150%
• operating temperature: -10 to +70°C
• dimensions: 125,5x125,2x100mm
• weight: 1200g
