Mean Well DIN rail power supply series DR-100

Switching power supplies in an enclosed housing with 100W, a universal input, an LED indicator for power on, insulation class II and a low no-load power (<1W). These devices are suitable for DIN rai...

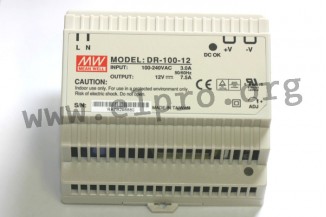

Mean Well DIN rail power supply series DR-100

Switching power supplies in an enclosed housing with 100W, a universal input, an LED indicator for power on, insulation class II and a low no-load power (<1W). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with EN50178, EN61204-3, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DR-100-12, DR-100-15 and DR-100-24.

  • single output
  • output: 90W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 45A
  • output voltage adjustment: +20%
  • overload protection: 105 to 135%
  • operating temperature: -20 to +60°C
  • dimensions: 100x93x56mm
  • weight: 350g
> More
Data Sheet
Showing 1 - 1 of 1 product
  • Product Stock Unit price Volume discounts
  • Mean Well
    DR 100 12V 7,5A
    31,29 €
    29353 DR 100 12V 7,5A DR-100-12 DR-100-12
    31,29 €
    Stock: 8
Showing 1 - 1 of 1 product
