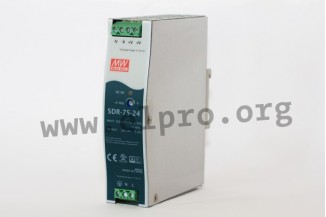

Mean Well DIN rail power supply series SDR-75

Switching power supplies in an enclosed housing with 75W, an LED indicator, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected again...

Mean Well DIN rail power supply series SDR-75

Switching power supplies in an enclosed housing with 75W, an LED indicator, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SDR-75-12, SDR-75-24 and SDR-75-48.

  • single output
  • output: 75,6 to 76,8W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 50A
  • peak power: 112,5W (3s)
  • leakage current: <1mA
  • output voltage adjustment: +15%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 510g
> More
Data Sheet
Showing 1 - 3 of 3 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    SDR-75-12
    27,69 €
    41538 SDR-75-12 SDR-75-12
    27,69 €
    Quantity Unit price
    50 + 25,99 €

    More
    Stock: 113
  • Mean Well
    SDR-75-24
    26,59 €
    41539 SDR-75-24 SDR-75-24
    26,59 €
    Quantity Unit price
    50 + 24,99 €

    More
    Stock: 490
  • Mean Well
    SDR-75-48
    29,49 €
    41540 SDR-75-48 SDR-75-48
    29,49 €
    Quantity Unit price
    50 + 27,79 €

    More
    Stock: 21
Showing 1 - 3 of 3 products
