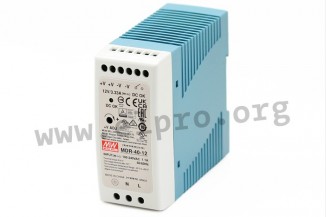

Mean Well DIN rail power supply series MDR-40

Switching power supplies with 40W, a universal input, an LED indicator for power on, a DC OK relay contact, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rai...

Mean Well DIN rail power supply series MDR-40

Switching power supplies with 40W, a universal input, an LED indicator for power on, a DC OK relay contact, a low no-load power and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-40-5, MDR-40-12, MDR-40-24 and MDR-40-48.

  • single output
  • output: 30 to 40,8W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <1mA
  • output voltage adjustment: ±20%
  • no-load power: <0,75W
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 300g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    MDR-40-5, Mean Well DIN rail switching power supplies, 40W, MDR-40 series
    14,19 €
    17803 MDR-40 5V 6A MDR-40-5 MDR-40-5
    14,19 €
    Quantity Unit price
    50 + 13,29 €

    More
    Stock: 571
  • Mean Well
    MDR-40-12, Mean Well DIN rail switching power supplies, 40W, MDR-40 series
    14,19 €
    17800 MDR-40 12V 3,33A MDR-40-12 MDR-40-12
    14,19 €
    Quantity Unit price
    50 + 13,29 €

    More
    Stock: 1175
  • Mean Well
    MDR-40-24, Mean Well DIN rail switching power supplies, 40W, MDR-40 series
    14,19 €
    17801 MDR-40 24V 1,7A MDR-40-24 MDR-40-24
    14,19 €
    Quantity Unit price
    50 + 13,29 €

    More
    Stock: 1349
  • Mean Well
    MDR-40-48, Mean Well DIN rail switching power supplies, 40W, MDR-40 series
    14,89 €
    17802 MDR-40 48V 0,83A MDR-40-48 MDR-40-48
    14,89 €
    Quantity Unit price
    50 + 13,89 €

    More
    Stock: 182
