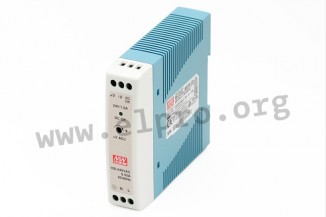

Mean Well DIN rail power supply series MDR-20

Switching power supplies with 20W, a universal input, screw terminals (touch guard), an LED indicator for power on, a DC OK signal and a low no-load power. These devices are suitable for DIN rail mount...

Mean Well DIN rail power supply series MDR-20

Switching power supplies with 20W, a universal input, screw terminals (touch guard), an LED indicator for power on, a DC OK signal and a low no-load power. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: MDR-20-5, MDR-20-12, MDR-20-15 and MDR-12-24.

  • single output
  • output: 15 to 24W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <1mA
  • output voltage adjustment: ±10%
  • no-load power: <0,75W
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 190g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    MDR-20-5, Mean Well DIN rail switching power supplies, 20W, MDR-20 series
    10,69 €
    17799 MDR-20 5V 3A MDR-20-5 MDR-20-5
    10,69 €
    Quantity Unit price
    50 + 10,09 €

    More
    Stock: 1034
  • Mean Well
    MDR-20-12, Mean Well DIN rail switching power supplies, 20W, MDR-20 series
    10,69 €
    17797 MDR-20 12V 1,67A MDR-20-12 MDR-20-12
    10,69 €
    Quantity Unit price
    50 + 10,09 €

    More
    Stock: 772
  • Mean Well
    MDR-20-15, Mean Well DIN rail switching power supplies, 20W, MDR-20 series
    11,19 €
    34074 MDR-20 15V 1,34A MDR-20-15 MDR-20-15
    11,19 €
    Quantity Unit price
    50 + 10,49 €

    More
    Stock: 112
  • Mean Well
    MDR-20-24, Mean Well DIN rail switching power supplies, 20W, MDR-20 series
    10,69 €
    17798 MDR-20 24V 1A MDR-20-24 MDR-20-24
    10,69 €
    Quantity Unit price
    50 + 10,09 €

    More
    Stock: 11577
Showing 1 - 4 of 4 products
