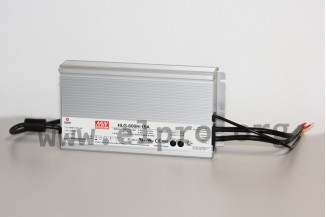

Mean Well LED driver series HLG-600H

LED drivers in a metal housing (IP65) with a constant voltage, 600W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications, are not dimmable. We offer the following types of this Mean Well series: HLG-600H-12A, HLG-600H-15A, HLG-600H-20A, HLG-600H-24A, HLG-600H-30A, HLG-600H-36A, HLG-600H-42A, HLG-600H-48A and HLG-600H-54A.

single output
output: 480 to 604,8W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 70A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 280x144x48,5mm
weight: 3900g
