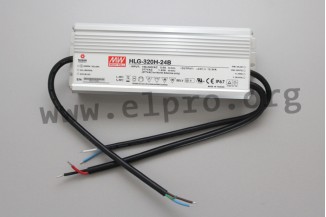

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 320W. These devices comply with EN61347-2-13, EN61347-1...

Mean Well LED driver series HLG-320H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), a constant current and 320W. These devices comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: HLG-320H-12B, HG-320H-15B, HLG-320H-20B, HLG-320H-24B, HLG-320H-30B, HLG-320H-36B, HLG-320H-42B, HLG-320H-48B and HLG-320H-54B.

  • single output
  • output: 264 to 321,6W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 70A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 252x90x43,8mm
  • weight: 1880g
> More
Data Sheet
Showing 1 - 9 of 9 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLG-320H-12B
    76,19 €
    36580 HLG-320H-12B HLG-320H-12B
    76,19 €
    Quantity Unit price
    50 + 74,19 €
    Stock: 128
  • Mean Well
    HLG-320H-15B, Mean Well LED drivers, 320W, IP67, CV and CC mixed mode, dimmable, HLG-320H series
    85,69 €
    244684 HLG-320H-15B HLG-320H-15B
    85,69 €
    Stock: 0
  • Mean Well
    HLG-320H-20B, Mean Well LED drivers, 320W, IP67, dimmable, HLG-320H_B series
    85,99 €
    135851 HLG-320H-20B HLG-320H-20B
    85,99 €
    Quantity Unit price
    50 + 84,19 €
    Stock: 8
  • Mean Well
    HLG-320H-24B
    72,99 €
    36581 HLG-320H-24B HLG-320H-24B
    72,99 €
    Quantity Unit price
    50 + 71,09 €
    Stock: 435
  • Mean Well
    HLG-320H-30B, Mean Well LED drivers, 320W, IP67, CV and CC mixed mode, dimmable, HLG-320H series
    85,69 €
    244689 HLG-320H-30B HLG-320H-30B
    85,69 €
    Stock: 0
  • Mean Well
    HLG-320H-36B
    85,99 €
    41273 HLG-320H-36B HLG-320H-36B
    85,99 €
    Quantity Unit price
    50 + 84,19 €
    Stock: 34
  • Mean Well
    HLG-320H-42B, Mean Well LED drivers, 320W, IP67, dimmable, HLG-320H_B series
    82,19 €
    135743 HLG-320H-42B HLG-320H-42B
    82,19 €
    Quantity Unit price
    50 + 79,49 €
    Stock: 22
  • Mean Well
    HLG-320H-48B
    82,19 €
    104618 HLG-320H-48B HLG-320H-48B
    82,19 €
    Quantity Unit price
    50 + 79,49 €
    Stock: 105
  • Mean Well
    HLG-320H-54B
    82,19 €
    104619 HLG-320H-54B HLG-320H-54B
    82,19 €
    Quantity Unit price
    50 + 79,49 €
    Stock: 33
Showing 1 - 9 of 9 products
