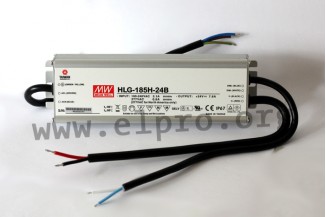

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 185W and a constant current. These SELV compliant devices comply with EN61347-...

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP67) with a constant voltage, a 3 in 1 dimming function (1 to 10V DC, PWM, 100kOhm potentiometer), 185W and a constant current. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are suitable for LED lighting applications. They have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12B, HLG-185H-15B, HLG-185H-20B, HLG-185H-24B, HLG-185H-30B, HLG-185H-36B, HLG-185H-48B and HLG-185H-54B.

  • single output
  • output: 156 to 187,2W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 228x68x38,8mm
  • weight: 1150g
> More
Data Sheet
Showing 1 - 8 of 8 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    HLG-185H-12B
    48,59 €
    36558 HLG-185H-12B HLG-185H-12B
    48,59 €
    Quantity Unit price
    50 + 46,99 €

    More
    Stock: 0
  • Mean Well
    HLG-185H-15B, Mean Well LED drivers, 185W, IP67, CV and CC mixed mode, dimmable, HLG-185H series
    50,79 €
    244619 HLG-185H-15B HLG-185H-15B
    50,79 €

    More
    Stock: 0
  • Mean Well
    HLG-185H-20B, Mean Well LED drivers, 185W, IP67, CV and CC mixed mode, dimmable, HLG-185H series
    50,79 €
    244622 HLG-185H-20B HLG-185H-20B
    50,79 €

    More
    Stock: 0
  • Mean Well
    HLG-185H-24B
    45,09 €
    36554 HLG-185H-24B HLG-185H-24B
    45,09 €
    Quantity Unit price
    50 + 43,89 €

    More
    Stock: 276
  • Mean Well
    HLG-185H-30B, Mean Well LED drivers, 185W, IP67, CV and CC mixed mode, dimmable, HLG-185H series
    50,79 €
    244625 HLG-185H-30B HLG-185H-30B
    50,79 €

    More
    Stock: 0
  • Mean Well
    HLG-185H-36B
    48,59 €
    41261 HLG-185H-36B HLG-185H-36B
    48,59 €
    Quantity Unit price
    50 + 46,99 €

    More
    Stock: 43
  • Mean Well
    HLG-185H-48B, Mean Well LED drivers, 185W, IP67, CV and CC mixed mode, dimmable, HLG-185H series
    50,79 €
    244629 HLG-185H-48B HLG-185H-48B
    50,79 €

    More
    Stock: 0
  • Mean Well
    HLG-185H-54B
    50,89 €
    104615 HLG-185H-54B HLG-185H-54B
    50,89 €
    Quantity Unit price
    50 + 49,89 €

    More
    Stock: 0
Showing 1 - 8 of 8 products
