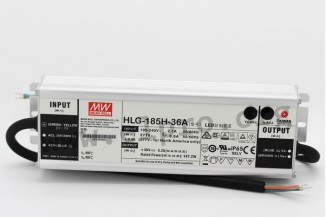

Mean Well LED driver series HLG-185H

LED drivers in a metal housing (IP65) with a constant current, 185W and a constant voltage. These SELV compliant devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C, are suitable for LED lighting applications and are not dimmable. They have a built-in potentiometer for adjusting the current limitation / output voltage as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HLG-185H-12A, HLG-185H-15A, HLG-185H-20A, HLG-185H-24A, HLG-185H-30A, HLG-185H-36A, HLG-185H-42A, HLG-185H-48A and HLG-185H-54A.

single output
output: 156 to 187,2W
input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
maximal input inrush current: 65A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 1500V AC
operating temperature: -40 to +90°C
dimensions: 228x68x38,8mm
weight: 1150g
