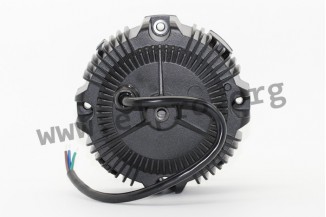

Mean Well LED driver series HBG-160

LED drivers in a round metal housing (IP65) with a constant power, 160W and a constant current. These SELV compliant devices are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: HBG-160-24A, HBG-160-36A, HBG-160-48A and HBG-160-60A.

single output
output: 156 to 158,4W
input voltage: 90 to 305V AC (47 to 63hz), 127 to 431V DC
maximal input inrush current: 65A
withstand voltage I/P-O/P: 3750V AC
withstand voltage I/P-FG: 2000V AC
withstand voltage O/P-FG: 500V AC
operating temperature: -40 to +85°C
dimensions: Ø151,68x66,5mm
weight: 1530g
